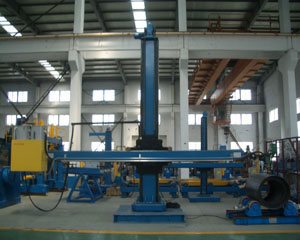

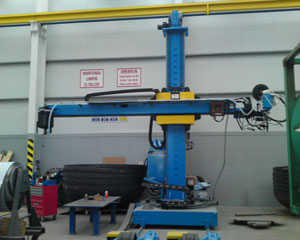

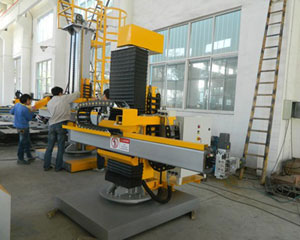

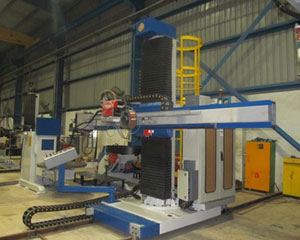

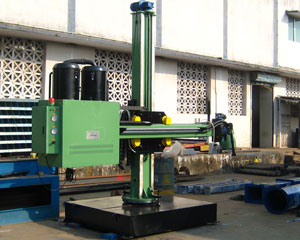

Welding Manipulator (Welding Column and Boom)
Description of Welding Manipulator:
The welding manipulator also called welding column boom. It is mainly used to offer firm support for high-precise welding, and can be used for welding vessels, wind towers, pipelines, and many other polishing machines. And we can provide radial position, fixed and fixed rotating type welding manipulators for our clients.
Features of Welding Manipulator:
1. The welding manipulator can be installed with the TIG or MIG welding machine. With this welding, the space is smoothly.
2. Our company welding column and booms are robustly constructed to give adequate support and stability essential for the precision welding applications.
3. They can reach either inside of small internal diameters or outside of very big diameters for welding of both circumferential and longitudinal joints.
4. We can attach more functions to welding column boom, such as tracing, monitoring, and solder recycling function.
Sketch Map of Welding Manipulator:
| Model | LH8080 | LH4580 | LH5060 | LH3040 | LH1235 |
| Horizontal travel(mm) | 8000 | 4500 | 5000 | 3000 | 1200 |
| Vertical travel(mm) | 8000 | 8000 | 6000 | 4000 | 3500 |
| Rotating angle(mm) | ±180° | ±180° | ±180° | ±180° | Manual control ±360° |
| Rotating speed(m/min) | 0.12 | 0.12 | 0.12 | 0.12 | |
| Boom elevating speed(m/min) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Boom forward speed(m/min) | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 | 0.12-1.2 |
| Table forward-backward speed(m/min) | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-2 | Manual control |
| Table rail distance(mm) | 2700 | 2000 | 2000 | 1500 | 1000 |
Welding Manipulator Accessories:
Customer can choose the accessory for easy operation, such as flux recovery and transmitting machine, tracking system, monitor and so on. We can design the welding column and boom with customer’s requirement.
