CNC Flame Cutting Machine (CNC Oxyfuel Cutter)

CNC Flame Cutting Machine (CNC Flame Cutter)

Description of CNC Flame Cutting Machine:

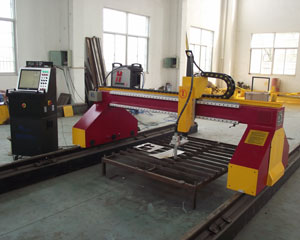

Constructed with gantry structure, the CNC flame cutting machine is driven by single side or double side. It's the high efficient and high performance automation thermal cutting equipment, combining oxygen gas cutting with computer control and precision mechanism. The oxyfuel cutting torch can cut the plate with any shape.

Features of CNC Flame Cutting Machine:
1. All the parts of our CNC flame cutting machine go through annealing, polishing and painting.
2. It could be assembled with lining three cutting torch and plasma cutting torch.
3.The elevating device of cutting torches can be automatically or electrically elevated by the ball guide rail.
4. Automatic fire lighting function is also available.
5. You could choose between the drag chain type or hanging type for displaying the pipeline.

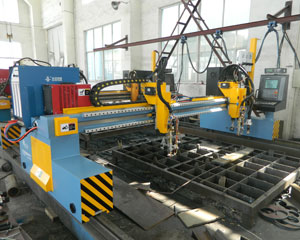

Structure of CNC Multi Head Flame Cutting Machine:
1. The CNC flame oxyfuel cutting machine consists of gantry frame, longitudinal main and auxiliary guide rail, lateral flame oxygen gas cutting torch, longitudinal strip oxygen gas cutting torch and CNC system.
2. The main driving end beam of the equipment adopts Japanese Panasonic ac servo drive and motor to drive Japanese Shimpo speed reducer.
3. Made of high strength rail, longitudinal guide rail is processed with precision machining on all contact surfaces. At the outside of the longitudinal guide rail is rack processed with precision grinding. The guide rail is fixed through the joining of press plate and backing plate with connection sleeve. This kind of installation can guarantee the longitudinal straightness and parallelism of the guide rail.

Technical Parameter of CNC Flame Cutting Machine:
Model Driving form Rail gap Effective Cutting thickness(mm) Cutting speed(mm/min) Max speed (mm/min) Vertical range (mm)
(mm) (mm) Flame cutting Flame cutting
CNCⅠ-2500 Single side 2500 1600 6-200 (Refer to the performance of the cutting head) 100-750 (Refer to the performance of the cutting head) 6000 200
CNCⅠ-3000 Single side 3500 2100 6000 200
CNCⅠ-4000 Single side 4000 3100 12000 200
CNCⅡ-4000 Double side 4000 3100 12000 200
CNCⅡ-5000 Double side 5000 4100 12000 200
CNCⅡ-6000 Double side 6000 5100 12000 200
CNCⅡ-7000 Double side 7000 6100 12000 200
CNCⅡ-8000 Double side 8000 7100 12000 200
CNCⅡ-9000 Double side 90000 8100 12000 200
CNCⅡ-11000 Double side 11000 10100 12000 200
CNCⅡ-12000 Double side 12000 11100 12000 200
CNCⅡ-13000 Double side 13000 12100 12000 200
Technical Parameter of CNC Multi Head Straight Cutting Machine:
Model Driving form Rail gap (mm) Effective (mm) Cutting thickness (mm) Cutting speed (mm/min) Max speed (mm/min) Vertical range (mm)
CNC-3000 Single side 3000 2100 6-200 (Refer to the performance of the cutting head) 100-750 (Refer to the performance of the cutting head) 6000 150
CNC-3500 Single side 3500 2600 6000 150
CNC-4000 Single side 4000 3100 12000 150
CNCⅡ-5000 Double side 5000 4100 12000 150
CNCⅡ-6000 Double side 6000 5100 12000 150
CNCⅡ-7000 Double side 7000 6100 12000 150
CNCⅡ-8000 Double side 8000 7100 12000 150
CNCⅡ-9000 Double side 9000 8100 12000 150
CNCⅡ-10000 Double side 10000 9000 12000 150
CNCⅡ-11000 Double side 11000 10100 12000 150
CNCⅡ-12000 Double side 12000 11100 12000 150
CNCⅡ-13000 Double side 13000 12100 12000 150

As a leading CNC flame cutting machine manufacturer in China, our CNC flame cutter comes with high rigidity, high precision and stable performance. Since 1999, Wuxi ABK Machinery Co.Ltd. CNC cutting machine use in structure, oil industry, wind tower line, press vessel, pipe production and so on. And we has been involved in the production of CNC cutting machines that include CNC flame cutting machine, CNC plasma cutting machine, CNC table cutting machine, intersection cutting machine and more. With ISO9001:2000 certification, our CNC flame cutting machine is exported to many countries, such as Brazil, Germany, France, Italy, Vietnam, Singapore Sapin, UK, Poland, Holand and so on.
