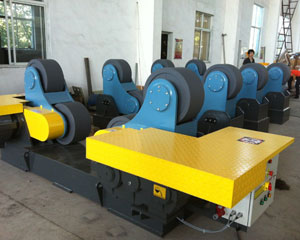

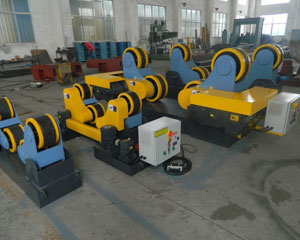

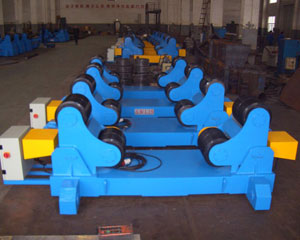

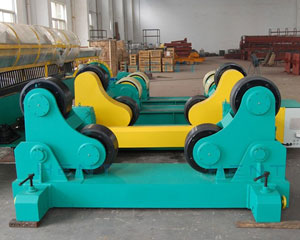

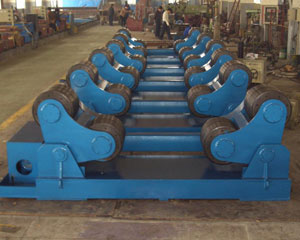

Conventional Welding Rotator
Description of Conventional Welding Rotator:
The HGZ type conventional welding rotators have advantages of the same kinds of products in domestic and international. We design and make them according to the requirements of the pressure ve-ssel factory. Our conventional welding rotator is mainly used for handling and automatic welding circular metal containers, and can be widely applied to pipes, API pipes, heat exchangers, mounted vessels, boilers, LPG bullets, barrels, pressure vessels and tanks. They have many advantages such as advanced technology, dependable quality, easy operation, and CE certification. It can used in all kind of the diameter, and frequency conversion setting, low sound, work placidity. Welding turn roller are exported to Brazil, India, Jordan, South Africa, UK, Poland, Spain, etc.
Our HGZ-type conventional welding rotator is designed and produced to better satisfy the growing demands for the pressure vessel, oil pipe and chemical tank manufacturers. It can deal with a wide range of diameters, and it adopts frequency conversion setting and stepless speed regulation mode.
We Offer Conventional Welding Rotators, As Follow:
1. Conventional Pipe Rotator & Tank Rotator
2. Conventional Vessel Rotator & Vessel Turning Roll
3. Conventional Wind Tower Rotator
| Type | HGZ5 | HGZ10 | HGZ20 | HGZ30 | HGZ40 | HGZ50 | HGZ60 | HGZ80 | HGZ100 | ||
| Load | 5 | 10 | 20 | 30 | 40 | 50 | 60 | 80 | 100 | ||
| Wheel | Metal Wheel | Diameter (mm) | 240 | 290 | 340 | 340 | 390 | 390 | 440 | 490 | 490 |
| (mm) | 20 | 25 | 30 | 30 | 40 | 40 | 50 | 60 | 80 | ||
| Rubber Wheel | Diameter (mm) | 250 | 300 | 350 | 350 | 400 | 400 | 450 | 500 | 500 | |
| (mm) | 100 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | ||
| Tube body diameter | (MIN)mm | 250 | 320 | 500 | 530 | 600 | 750 | 750 | 850 | 1000 | |
| (MAX)mm | 2300 | 2800 | 3500 | 3700 | 4200 | 4500 | 4800 | 5000 | 5000 | ||
| Wheel velocity(m/h) | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | 6-60 | ||
| Power of motor | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 4 | 4 | 5.5 | ||
| Way of setting | Electric magnetism of frequency conversion setting | ||||||||||
