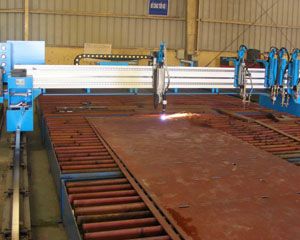

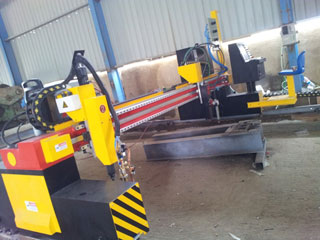

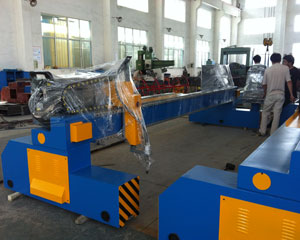

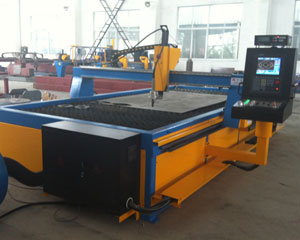

CNC Plasma Cutting Machine (CNC Plasma Cutter)

CNC Plasma Cutting Machine (CNC Plasma Cutter)

Description of CNC Plasma Cutting Machine:
Integrated with the technologies of computer control, precision mechanism and plasma, the CNC plasma cutting machine is the high efficient thermal cutting automation equipment. The CNC plasma cutting torch of the equipment can cut plate with any shape. Featuring wide cutting range, high efficiency and high cutting quality. Using the CNC plasma cutting machine won't cause dust and can decrease the pollution of noise and arc largely. The work piece after being cut deforms little.

Our CNC plasma cutting machine is driven by double side, and orientation system is available to assure the accuracy and precision of cutting. The equipment is designed with integrated module structure, which has the advantages of convenient and fast installation, small force of inertia and flexible movement. It's especially suitable for cutting the plate with the thickness of small and medium size.

Features of CNC Plasma Cutting Machine:
1. All the parts of our CNC plasma cutting machine go through annealing, polishing and painting.
2. It could be assembled with lining three flame cutting torch.
3.The elevating device of cutting torches can be automatically or electrically elevated by the ball guide rail.
4. Automatic fire lighting function is also available.
5. You could choose between the drag chain type or hanging type for displaying the pipeline.

Technical Parameter of CNC Plasma Cutting Machine:
Model Driving form Rail gap Effective Cutting thickness(mm) Cutting speed (mm/min) Max speed (mm/min) Vertical range (mm)
(mm) (mm) Plasma cutting machine Plasma cutting
CNCⅠ-2500 Single side 2500 1600 Varies with different models Varies with the power supply 6000 200
CNCⅠ-3000 Single side 3500 2100 6000 200
CNCⅠ-4000 Single side 4000 3100 12000 200
CNCⅡ-4000 Double side 4000 3100 12000 200
CNCⅡ-5000 Double side 5000 4100 12000 200
CNCⅡ-6000 Double side 6000 5100 12000 200
CNCⅡ-7000 Double side 7000 6100 12000 200
CNCⅡ-8000 Double side 8000 7100 12000 200
CNCⅡ-9000 Double side 90000 8100 12000 200
CNCⅡ-11000 Double side 11000 10100 12000 200
CNCⅡ-12000 Double side 12000 11100 12000 200
CNCⅡ-13000 Double side 13000 12100 12000 200
Technical Parameter of CNC Multi Head Straight Cutting Machine:
Model Driving form Rail gap (mm) Effective (mm) Cutting thickness (mm) Cutting speed (mm/min) Max speed (mm/min) Vertical range (mm)
CNC-3000 Single side 3000 2100 6-200 (Refer to the performance of the cutting head) 100-750 (Refer to the performance of the cutting head) 6000 150
CNC-3500 Single side 3500 2600 6000 150
CNC-4000 Single side 4000 3100 12000 150
CNCⅡ-5000 Double side 5000 4100 12000 150
CNCⅡ-6000 Double side 6000 5100 12000 150
CNCⅡ-7000 Double side 7000 6100 12000 150
CNCⅡ-8000 Double side 8000 7100 12000 150
CNCⅡ-9000 Double side 9000 8100 12000 150
CNCⅡ-10000 Double side 10000 9000 12000 150
CNCⅡ-11000 Double side 11000 10100 12000 150
CNCⅡ-12000 Double side 12000 11100 12000 150
CNCⅡ-13000 Double side 13000 12100 12000 150

We are CNC plasma cutting machine manufacturer in China, our CNC plasma cutter comes with high rigidity, high precision and stable performance. Since 1999, Wuxi ABK Machinery Co.Ltd. CNC cutting machine use in structure, oil industry, wind tower line, press vessel, pipe production and so on. And we has been involved in the production of CNC cutting machines that include CNC flame cutting machine, CNC plasma cutting machine, CNC table cutting machine, intersection cutting machine and more. With ISO9001:2000 certification, our CNC plasma cutting machine is exported to many countries, such as Brazil, Germany, France, Italy, Vietnam, Singapore Sapin, UK, Poland, Holand and so on.
