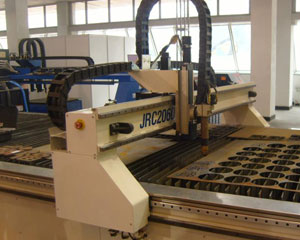

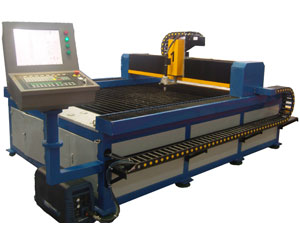

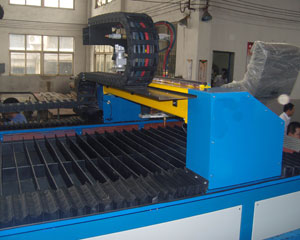

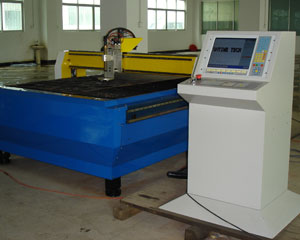

CNC Table Cutting Machine (CNC Cutting Table)

Description of CNC Table Cutting Machine:
ABK Machinery is a professional manufacturer of CNC cutting table manufacturer in China. We has been involved in the production of CNC cutting machines that include CNC flame cutting machine, CNC plasma cutting machine, CNC table cutting machine, intersection cutting machine and more. As a CNC table cutting system manufacturer, our CNC cutting machine is ISO9001 certified and has gained a good reputation from our customers in countries like Italy, Vietnam, Singapore, Germany, Brazil, Spain and more. We can also produce customized CNC cutting system, upon your request.

Application of CNC Table Cutting Machine:
The CNC cutting table is used for the thin plate, such for steel plate, stainless steel plate, aluminum plate, copper plate, acrylic sheet, leather, ceramics, and so on.

Major Components of CNC Table Cutting Machine:
1. Mechanical Parts
a. Portal Frame
Our CNC table cutting machine is composed of a beam and two longitudinal frames. The portal frame is composed of a driving frame and a beam. The beam adopts a square and hollow form, which is of high intensity and rigidity because it undergoes stress-relieve tempering treatment. A drag chain is applied on both the longitudinal and transverse driving devices.
The longitudinal and transverse guide rail adopts a high precision straight rail, which is strictly attached to the steel frame.
The longitudinal and transverse driving system is on the lower side of the driving frame for stable and reliable transmission.

b. Machine Driving
Our CNC table cutting machine is driven by a Panasonic servo motor driving system. Both the longitudinal and transverse driving devices are composed of a gear box and accurate gear track. The gap between final gear and gear track is automatically eliminated to ensure higher accuracy and continuous running. We also adopt a Japanese SHIMPO decelerator (the decelerator and motor are installed as one) on the X and Y axis. The decelerator operates with low noise levels.
A superior lifting regulation device is used for this platform machine. It is driven by a reducer motor to control the cutting torch. Additionally, we incorporate a bicylindrical straight guide rail for our guiding pole, which ensures the cutting accuracy of the whole machine.

c. Material
Beam: Q235 (A3 steel)
Gear: 40 Chrome
Gear track: 45 steel
Gear track accuracy: level 7

2. Electrical Parts
Our CNC table cutting machine attaches great importance to the technical servo system and logical control system. Therefore, we use the Panasonic alternating current servo driver and motor for stable and accurate performance.

Major Functions and Characteristics of Panasonic AC Servo SYstem:
a. It uses special Panasonic arithmetic which doubles the response of speed frequency to reach 500 HZ and decreases the locating time by a quarter of the former machines.
b. It resists resonance and has a controlling system that functions to compensate the rigidity of the steel to speed up correct location.
c. It boasts of a frequency analysis feature, which works to find the point of resonance and helps to make system adjustments.
d. It has two kinds of auto gain adjustments: conventional auto gain adjustment and real-time auto gain adjustment.
e. It is equipped with RS485, RS232C communication ports. The host controller can control 16 axes at one time.
f. IP 65 motor protection ensures strong adaptation to the environment.

We are CNC table cutting machine manufacturer in China, our CNC cutting table comes with high rigidity, high precision and stable performance. Since 1999, Wuxi ABK Machinery Co.Ltd. CNC cutting machine use in structure, oil industry, wind tower line, press vessel, pipe production and so on. And we has been involved in the production of CNC cutting machines that include CNC flame cutting machine, CNC plasma cutting machine, CNC table cutting machine, intersection cutting machine and more. With ISO9001:2000 certification, our CNC table cutter is exported to many countries, such as Brazil, Germany, France, Italy, Vietnam, Singapore Sapin, UK, Poland, Holand and so on.
