Description

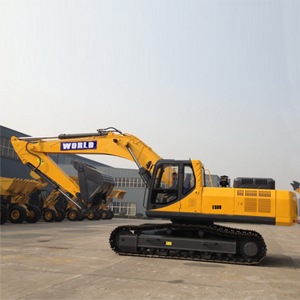

This E330 hydraulic crawler digger can operate a weight as high as 32.9t. With the employment of CUMMINS 6C8.3 engine, and more advanced part such as 6.47m boom, 3.186m working arm, and bucket range of 0-1.4m3, all those make this E330 hydraulic crawler excavator an high efficient construction machinery.
As a kind of engineering machinery and construction equipment, our E330 hydraulic crawlers excavator are widely used to level or push material back into a hole. In the construction site, its main work is digging of trenches, holes, foundations, brush cutting, lifting and placing of pipes, mining, river dredging etc.
E330 Hydraulic Crawler Excavator
Technical Specificationsr
| Items | Models | |
| E330 | ||
| Engine System | ||
| Brand & Origin | ISUZU（Japan） | |
| Model | AA-6HK1XQP | |
| Rated Power (kw/rpm) | 190.5/2000 kw/rpm | |
| Max. Torque (N.m) | 872.8/1700 N.m/rpm | |
| Idle Speed (rpm) | 1050rpm | |
| Engine Displacement (L) | 7.79L | |
| Cylinder No.-Bore x Stroke (mm) | 6-115 mmx125 mm | |
| Engine Oil Capacity (L) | 28~36L | |
| Fuel Tank Capacity (L) | 520L | |
| Fuel Consumption Rate (g/kw.h) | 236.6 g/kw.h or less | |
| Hydraulic System | ||
| Main Pump | Brand & Origin | KAWASAKI |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Nominal Displacement (cm3/rev) | 265*2L/min | |
| Multiple Unit Valve | Brand & Origin | Parker |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Hydraulic Motor | Travel Motor Brand & Origin | Doosan |
| Travel Motor Type & Model | MAG-180VP-6000 | |
| Traveling Speed (H/L km/h)) | 4.6/2.9km/h | |
| Swing Motor Brand & Origin | KAWASAKI | |
| Swing Speed (r/min) | 10.5r/min | |
| Hydraulic Cylinder | Boom Cylinder (mm) | 140mmx100mm |
| Arm Cylinder (mm) | 160mmx110mm | |
| Bucket Cylinder (mm) | 140mmx100mm | |
| Hydraulic Oil Tank Capacity (L) | 180L | |
| Working Specifications | ||
| Weight (kg) | 31680kg | |
| Bucket Capacity (m3) | 1.4m3 | |
| Bucket Width (mm) | 1282mm | |
| Bucket Digging Force (kN) | 171kN | |
| Arm Digging Force (kN) | 137kN | |
| Ground Pressure (KPa) | 60KPa | |
| Grade ability | 35° | |
| Max. Digging Depth (mm) | 7300mm | |
| Max. Digging Height (mm) | 10200mm | |
| Max. Digging Radius (mm) | 11100mm | |
| Max. Discharging Height (mm) | 7150mm | |
| Min. Ground Clearance (mm) | 516mm | |
| Min. Swing Radius (mm) | 3405mm | |
| Overall Dimensions (mm) | 11050mmx3190mmx3260mm | |
Notice: the optional or special parts can not be equipped on the machine without our company’s authorization.
World Equipment Co., Ltd, is a professional manufacturer and supplier of hydraulic crawler excavator, or hydraulic crawler digger in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, crawler excavator, and other products. We assemble our quality components according to the ISO quality management system, and all our products are all manufactured in strict accordance with ISO14001 environmental management standard. As the matter those advantages, our hydraulic crawler excavators, or hydraulic crawler diggers are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. For more information about hydraulic crawler excavator, or hydraulic crawler digger, PLS be free to contacts us.-
