Home » Products » Excavator » Crawler Excavator » E360 Hydraulic Excavator

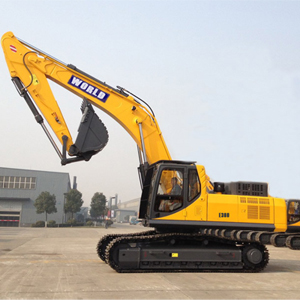

The operating weight of hydraulic excavator machine E360 can reach 35.7t; CUMMINS 6C8.3 engine is applied to the machine. The boom of this machine is 6.47m. Working arm can reach 3.186m. And the bucket is 1.6m3. . For more detailed information, please refer to the following specifications.
E360 Hydraulic Excavator
Technical Specificationsr
| Items | Models | |
| E360 | ||
| Engine System | ||
| Brand & Origin | CUMMINS | |
| Model | 6C8.3 | |
| Rated Power (kw/rpm) | 186/2200 kw/rpm | |
| Max. Torque (N.m) | 1158/1500 Nm/rpm | |
| Idle Speed (rpm) | 850rpm | |
| Engine Displacement (L) | 8.3 L | |
| Cylinder No.-Bore x Stroke (mm) | 6-114mmx134.9mm | |
| Engine Oil Capacity (L) | 17-28L | |
| Fuel Tank Capacity (L) | 550 L | |
| Fuel Consumption Rate (g/kw.h) | 214 g/kw.h or less | |
| Hydraulic System | ||
| Main Pump | Brand & Origin | REXROTH |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Nominal Displacement (cm3/rev) | 320*2L/min | |
| Multiple Unit Valve | Brand & Origin | REXROTH |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Hydraulic Motor | Travel Motor Brand & Origin | REXROTH |
| Travel Motor Type & Model | ||
| Traveling Speed (H/L km/h)) | 5.1/3.0km/h | |
| Swing Motor Brand & Origin | SUNJIN | |
| Swing Speed (r/min) | 10.5r/min | |
| Hydraulic Cylinder | Boom Cylinder (mm) | 140mmx100mm |
| Arm Cylinder (mm) | 160mmx110mm | |
| Bucket Cylinder (mm) | 140mmx100mm | |
| Hydraulic Oil Tank Capacity (L) | 180L | |
| Working Specifications | ||
| Weight (kg) | 36020kg | |
| Bucket Capacity (m3) | 1.6m3 | |
| Bucket Width (mm) | 1644mm | |
| Bucket Digging Force (kN) | 183kN | |
| Arm Digging Force (kN) | 154kN | |
| Ground Pressure (KPa) | 68KPa | |
| Grade ability | 35° | |
| Max. Digging Depth (mm) | 6581mm | |
| Max. Digging Height (mm) | 10105mm | |
| Max. Digging Radius (mm) | 11055mm | |
| Max. Discharging Height (mm) | 7101mm | |
| Min. Ground Clearance (mm) | 530mm | |
| Min. Swing Radius (mm) | 3405mm | |
| Overall Dimensions (mm) | 11138mmx3190mmx3212mm | |
Notice: the optional or special parts can not be equipped on the machine without our company’s authorization.
