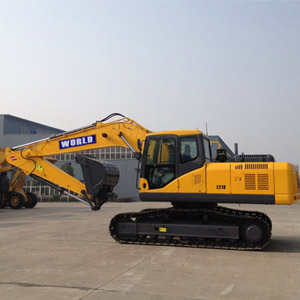

This E210 hydraulic digger is an efficient construction machine equipped with CUMMINS B5.9-C engine and variable double–piston pump for the hydraulic system. It is suitable for the operating construction weight under 20.5t. This hydraulic excavator machine adopts 5.7m boom and 2.919m working arm, as well as bucket range of 0.36-1.0m3. Those specifications assure the machine efficient in th application of hydro-electric project, mining, road construction, city dwellings construction, pipe laying, dredging project and road repair projects and so on.
E210 Crawler Excavator
Main Specification of E210 Crawler Excavator, Crawler Digger
| Items | Models | |
| E210 | ||
| Engine System | ||
| Brand & Origin | ISUZU（Japan） | |
| Model | AA-6BG1TRP-03 | |
| Rated Power (kw/rpm) | 113.2/2100 kw/rpm | |
| Max. Torque (N.m) | 550/1600 Nm/rpm | |
| Idle Speed (rpm) | 950rpm | |
| Engine Displacement (L) | 6.494L | |
| Cylinder No.-Bore x Stroke (mm) | ||
| Engine Oil Capacity (L) | ||
| Fuel Tank Capacity (L) | 375 L | |
| Fuel Consumption Rate (g/kw.h) | ||
| Hydraulic System | ||
| Main Pump | Brand & Origin | KAWASAKI（Korea） |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Nominal Displacement (cm3/rev) | 220*2L/min | |
| Multiple Unit Valve | Brand & Origin | PARKER（Korea） |
| Rated Pressure (MPa) | 31.4/34.3MPa | |
| Hydraulic Motor | Travel Motor Brand & Origin | Dossan (Korea) |
| Travel Motor Type & Model | ||
| Traveling Speed (H/L km/h)) | 5.2/3.2km/h | |
| Swing Motor Brand & Origin | Sungbo (Korea) | |
| Swing Speed (r/min) | 12r/min | |
| Hydraulic Cylinder | Boom Cylinder (mm) | 120 mmx85 mm |
| Arm Cylinder (mm) | 135 mmx95 mm | |
| Bucket Cylinder (mm) | 115 mmx80 mm | |
| Hydraulic Oil Tank Capacity (L) | 180L | |
| Working Specifications | ||
| Weight (kg) | 21020kg | |
| Bucket Capacity (m3) | 0.9m3 | |
| Bucket Width (mm) | ||
| Bucket Digging Force (kN) | 120kN | |
| Arm Digging Force (kN) | 94.5kN | |
| Ground Pressure (KPa) | 48KPa | |
| Grade ability | 70% | |
| Max. Digging Depth (mm) | 6486mm | |
| Max. Digging Height (mm) | 10095mm | |
| Max. Digging Radius (mm) | 9813mm | |
| Max. Discharging Height (mm) | 7196mm | |
| Min. Ground Clearance (mm) | 460mm | |
| Min. Swing Radius (mm) | 2708mm | |
| Overall Dimensions (mm) | 9400mmx2800mmx3010mm | |
Notice: the optional or special parts can be available on the condition of consulting our company in advance.
World Equipment is a professional manufacturer and supplier of hydraulic excavator (hydraulic digger) in China. We supply all kind of construction and engineering equipments like wheel loader, road rollers, and other products. As a one-stop service supplier, World Equipment company is committed to offering high quality, reliable products and service on time, on delivery and on budget, so that to keep your project running smoothly and on schedule. As the matter those advantages, our products are widely exported to Russia, Brazil, Congo, Ghana, Nigeria, Gambia, Kenya, and Tanzania and gain high reputation among our customers. We offer OEM service upon request. If you need more information about hydraulic excavator (hydraulic digger), PLS don't hesitate to contacts us.
-
