Description:
This hydraulic truck crane has a lifting capacity of 25t. Hydraulic truck cranes belong to mobile cranes which can utilize hydraulics to lift thousands of pounds. A hydraulic mobile crane consists of boom, jib, gear, outriggers, counterweights, reinforced-steel cable and hook. QLY 25 hydraulic truck crane integrates advanced design and manufacturing techniques at home and abroad. It is ahead of domestic industry level by its characteristics of safety, reliability and environment protection. Hydraulic truck cranes are suitable for highways, bridges and buildings construction, and more.

Basic Information of Mobile Crane:
1. Maximum lifting capacity: 25t
2. Maximum boom length: 32m
3. Maximum jib length: 8m
4. Maximum lifting height: 32m
5. Maximum lifting height (boom+jib): 40m

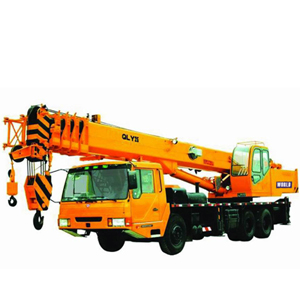

QLY 25 Hydraulic Truck Crane

QLY 25 Hydraulic Truck Crane

Features of QLY 25 Hydraulic Truck Crane:
1.The machine can be configured with full-head luxury cabin, integral operating cabin with large view and fully covered walking plate at the left side and right side.
2.This mobile crane is also equipped with three-axle automobile chassis, four-segment telescopic boom or hexagonal boom with large curve.
3.QLY 25 hydraulic truck crane employs single-cylinder front support luffing, one truss type jib, double H shaped outrigger and attached with the front 5th outrigger which can realize 360° full swing lifting work.
4.This hydraulic mobile crane adopts rod type control technique, so it has strong lifting capacity.
5.The driving type of QLY 25 hydraulic truck crane is 6×4.
6.QLY 25 hydraulic truck crane is easy and flexible to operate.

Safety Configuration:
QLY 25 hydraulic mobile crane can be configurable with load moment indicator, height limited device, hydraulic oil radiator, all kind of safety valves and lamps to ensure the security.

Parameters of QLY 25 Hydraulic Truck Crane:

DATA UNIT QLY25
Overall dimension
Overall length  mm 12930
Overall width mm 2500
Overall height mm 3450
Weight
Total weight in travel kg 28900
Front axle load kg 6600
Rear axle load kg 22300
Power
Engine model   WP10.270
Engine rated power Kw/(r/min) 199/2200
Engine rated torque N.m/(r/min) 1100/1200~1600
Travel
Max. travel speed Km/h ≤70
Min. turning diameter m 21
Min. ground clearance mm 320
Approach angle ° 20
Departure angle ° 11
Max. grade ability % 25
Fuel consumption for 100km L 32
Main performance
Max. rated total lifting capacity t 25
Min. rated working radius mm 3000
Turning radius at turntable tail m 3.2
Max. lifting torque KN.M 784
Base boom m 10.2
Fully extended boom m 32
Fully extended boom+ jib m 40
Longitudinal outrigger span m 5.31
Lateral outrigger span m 5.9
Working speed
Boom luffing time s 80
Boom full extension time s 120
Max. swing speed r/min ≥2.0
Max. speed of main. winch (single rope) m/min ≥110
Max. speed of aux. winch (single rope) m/min ≥110

Rated Lifting Load Chart of QLY 25 Hydraulic Truck Crane

Full-extend outrigger and without 5th outrigger, boom working at the side and rear or full-extend outrigger with 5th outrigger, boom working 360°circle
BOOM(m) Boom Angle (°)
10.2 15.7 21.1 26.6 32 32
Ratio 8 6 4 4 2 1
Working Radius (m) Lifting Load (kg) Lifting Load (kg) Lifting Load (kg) Lifting Load (kg) Lifting Load (kg) Lifting Load (kg)
3.0 25000 78
3.5 25000 14600 76
4.0 24000 14600 10000 74
4.5 21500 14600 10000 8000 72
5.0 18000 14600 10000 8000 70
5.5 17000 14000 10000 8000 68
6.0 15500 13000 10000 8000 6500 3000 66
6.5 13500 12500 9500 8000 6500 3000 64
7.0 12000 12200 9000 8000 6500 3000 62
8.0 9500 9700 8000 7500 6000 3000 60
9.0 7500 7800 7500 7000 5500 3000 58
10.0 6500 6500 6000 5000 3000 56
12.0 4700 4700 5000 4300 3000 54
14.0 3600 3750 3700 3000 52
16.0 2800 2800 3000 2800 50
18.0 2300 2300 2500 2500
20.0 1800 1900 1900
22.0 1400 1500 1500
24.0 1200 1200

World Equipment is a professional manufacturer and supplier of hydraulic truck crane in China. Our main products are excavator (digger), wheel loader, crawler bulldozer, road roller, mobile crane, motor grader and skid steer loader. We offer QLY 25 hydraulic truck crane for your choice. Our products have been well received in Europe, South America, Middle East, Southeast Asia and Africa. Over the past 10 years, we have kept improving our products to make them better adapt to the market. If you need hydraulic truck crane, please contact us without hesitation.
