W166 wheel loader has a great capacity of heavy duty; torque converter and counter-shaft transmission gearbox-Komatsu technology are used. They can be assembled separately. The machine has the features of higher reliability and easier maintenance; W166 wheel loader can be operated easily due to fully hydraulic steering system, power shift transmission and pilot controlled; the bucket of the machine can be leveled automatically. We have many optimized working device, which can ensure higher productivity; the operation environment is comfortable because new design cabin, grammar seat and air-conditioner are employed; there are various working devices in this wheel loader that are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork, etc. This can meet your different needs.

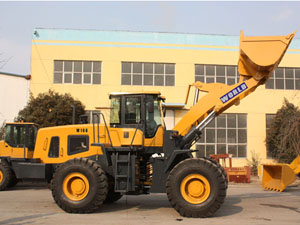

W166 Wheel Loader
Main Specification
Specifications | |||
1 | Bucket capacity | 3.2m³ | |
2 | Rated load | 6000kg | |
3 | Transportation dimension(L×W×H) | 8360×2950×3600mm | |
4 | Wheelbase | 3260mm | |
5 | Thread | 2250mm | |
6 | Max. breakout force | 200KN | |
7 | Max. dumping height | 3160mm | |
8 | Dump distance | 1200mm | |
9 | Total time | 11.48s | |
10 | Operating weight | 19000kg | |
Engine | |||
1 | Model | WEICHAI WD10G240E21 | |
2 | Pattern | Turbocharger, inline, water-cooled, 4-stroke, direct injection | |
3 | Rated power/speed | 175kw/2200rpm | |
4 | Max. torque | 920N.m | |
Torque converter and transmission system | |||
1 | Model of torque converter | YJSW315-6H | |
2 | Pattern | single stage two phase four components | |
3 | Transmission type | power shift plant structure | |
4 | Number of gear | 2 forward, 1 reverse | |
5 | Max. travel speed | 38km/h | |
Alex | |||
1 | Alex | Yunyu | |
2 | Main reducer pattern | Spiral bevel gear first reduction | |
3 | Pattern of wheel side moderation | Single stage planetary | |
Tire | |||
1 | Tire Size | 26.5-25 | |
Steering system | |||
1 | Pattern | Full hydraulic steering system | |
2 | Max. turning radius(outside of bucket) | 7260mm | |
3 | Max. turning angle | 35º±1 | |
Hydraulic system | |||
1 | Implement pump | P7600-F125 | |
2 | Displacement | 275L/min | |
3 | System working pressure | 18MPa | |
4 | Distribution device model | DF32 | |
5 | Pilot valve model | DJS | |
Brake system | |||
1 | Service brake | Air assisted oil disc on four wheel | |
2 | Parking brake | Flexible shaft control, disc type |
-
