Home » Products »W156 Wheel Loader

1.This W156 wheel loader features high-quality engine, low oil consumption, low noises, and reliable performance.
2.It has been designed with double-turbo hydraulic torque converter, and high-efficient planet-power shifting transmission.
3.Developed on the basis of advanced European technology, its fortified axles have stronger loading capacity, large driving force, and more reliable and stable performance.
4.Its integral instrument platform is of reliable quality, durability, long service lifespan, and elegant appearance.
5.Its rear frame is fitted with box structure, and hinged panels with low stress and high strength steel.

6.Most of the components W156 wheel loader, like cylinders, pumps, valves, are from international famous brands, which ensure the stability and reliability of this loader.
Wheel Loader
w156 Wheel Loader w156 Wheel Loader w156 Wheel Loader w156 Wheel Loader w156 Wheel Loader

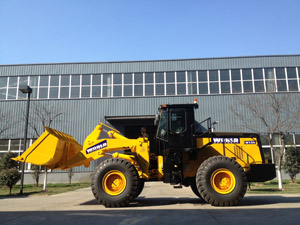

W156 Wheel Loader

Main Specification

Main standard Configuration W156 Wheel Loader
1 Bucket Capacity 3.0M³
2 Rated Load 5000kg


Travelling Speed
Forward 1st 0-11.5km/h
Forward 2nd 0-37.5km/h
Reverse 1st 0-17km/h
4 Max. Traction 165±5kN
5 Max.Break Out Force 150±5kN
6 Min. Turning Radius (outside tires) 6700±50mm
7 Max. Dumping Height 2970±50mm
8 Max. Dumping Reach 1200±50mm
9 Total Hydraulic Cycle Time ≤11.1s
10 Full Bucket Lifting Time ≤5.76s
11 Wheel Base 3427±30mm
12 Tread Width 2300±10mm
13 Dimensions (L×W×H) L:8075×W:2960×H:3500mm
14 Min. Clearance Over Ground 380±20mm
15 Operating Weight 16200±200kg
Diesel Engine
1 Diesel Engine Model of W156 Wheel Loader WEICHAI WD615 WD615 C6121 C6121 CUMMINS6CTA8.3-C215
2 Type Direct injection, turbocharged, water cooling, 4 strokes, 6 cylinders
3 Rated Output 162kW 162kW 160kW
4 Rated Speed 2200rpm
5 Max. Torque 855N.m 860N.m 908N.m
1 Model ZL50 Hangzhou Advance Gearbox Group Co., Ltd
2 Rated Input Speed 2200rpm
3 Transmission Type two forward and one reverse gears/power shift, planet type
Mechanical Gear Ratios
1 Gear I 2.4346
2 Gear II 0.6532
3 Reverse 1.7814
4 Hydraulic Oil Pressure 1.10-1.40Mpa
5 Inlet Oil Pressure Of Torque Convertor 0.30-0.45Mpa
6 Outlet Oil Pressure Of Torque Convertor 0.20-0.30Mpa
7 Lubricating Oil Pressure 0.10-0.20Mpa
8 Max. Permissible Temp & Outlet Of Torque Convertor 120℃
Transaxle & Tyre
1 Transaxle Type self-made by Meritor technology
2 Drive System 4 wheel drive
3 Rear Axle Oscillation Center oscillation
4 Oscillating Angle of Rear Axle 13°
5 Carrier Assembly Reduction Ratio 4.625
6 Wheel End Reduction Assembly Reduction Ratio 4.94
7 Tire  23.5-25
8 Pressure Of Tire 0.28-0.32MPa
Working Hydraulic System
1 Working Pump Type Gear Pump
2 System Working Pressure 17MPa
3 Lifting Cylinder Bore × Stroke 165×757mm
4 Tilting Cylinder Bore × Stroke 200×540 mm
Steering System
1 Type Articulation, full hydraulic power steering system with flow-amplified system
2 Steering Pump Type CBGJ2080
3 Max. Working Pressure 12MPa
4 Steering Cylinder Bore x Stroke 100×342mm
5 Max. Steering Angle 35º±1º
Brake System
1 Type Air over hydraulic disc on four wheels brakes
Oil Injection Capacity
1 Fuel Tank 300L
2 Engine Oil 30L
3 Transmission 45L
4 Hydraulic Oil Tank 200L
5 Transaxle 30L
