W120 mini wheel loader adopts torque converter and counter-shaft transmission gearbox-Komatsu technology, which can ensure higher reliability and easier maintenance. Fully hydraulic steering system and power shift transmission are employed in this machine. Therefore, the operation is easier the users. Bucket can be leveled automatically and there are many optimized working device that can be available easily. Therefore, the productivity of this kind of machine is higher.
The operation environment has been equipped with new design cabin, grammar seat, air-conditioner and other device. So this mini wheel loader is comfortable for the driver. There are various working devices that can be available easily, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc. It can satisfy your different needs.

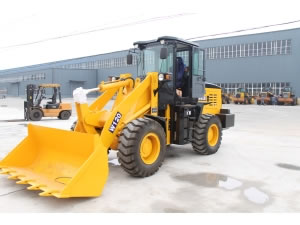

W120 Mini Wheel Loader
Main Specification:Specifications | ||
1 | Bucket capacity | 1.5m³ |
2 | Rated load | 2000kg |
3 | Transportation dimension (L×W×H) | 5910×1910×2810mm |
4 | Wheelbase | 2250mm |
5 | Thread | 1510mm |
6 | Max. breakout force | 48.87KN |
7 | Max. dumping height | 3200/3500mm |
8 | Dump distance | 885mm |
9 | Total time | 11.3s |
10 | Operating weight | 5500kg |
Engine | ||
1 | Model | Cummins 4BT3.9-C100 |
2 | Pattern | Inline、water-cooled、4-stroke、direct injection |
3 | Rated power/speed | 75kw/2400rpm |
4 | Max. torque | 330N.M |
5 | Normal fuel consumption | 203g/kW.h |
6 | Total displacement | 3.9L |
7 | Fuel | 0#or-10﹟ 0﹟or-10﹟ light diesel |
Torque converter and transmission system | ||
1 | Model of torque converter | YJ280 |
2 | Pattern | 3-element single stage |
3 | Transmission type | Full-power shift, counter shift type |
4 | Number of gear | 2 forward, 2 reverse |
5 | Max. travel speed | 24km/h |
Alex | ||
1 | Alex | Hualu |
2 | Main reducer pattern | Arc taper gear, moderation of first grade |
3 | Pattern of wheel side moderation | planet gear moderation of single |
Tire | ||
1 | Tire Size | 16/70-20 |
Steering system | ||
1 | Pattern | Articulated and hydraulic steering |
2 | Min. turning radius(outside of bucket) | 4500mm |
3 | Max. turning angle | 35º±1 |
Hydraulic system | ||
1 | Implement pump | CBF25 |
2 | Displacement | 25ml/r |
3 | System working pressure | 16MPa |
4 | Distribution device model | DF20.2C |
Brake system | ||
1 | Service brake | Air assisted oil disc on four wheel |
2 | Parking brake | flexible shaft control, outside bunch drum type |
