Home » Products » Road Roller » LTS204H Single Drum Roller

Road Roller Main Features:
1. Full hydraulic drive, reliable performance, safety.
2. CVT (continuously variable transmission), it is very easy to change the travel speed freely.
3. Hydraulic vibration, with powerful centrifugal force and excellent compaction density.
4.Hydraulic articulated steering, flexible outstanding performance.
5. High operation efficiency with best economic performance.
6.Equipped with large-size hood as engine cover, more convenient for maintenance and repair.
7. Can be adopted in variable conditions, such like compaction on the asphalt pavement and compaction on the sugared and filling materials.
8. Tread-pattern driving tires as option.

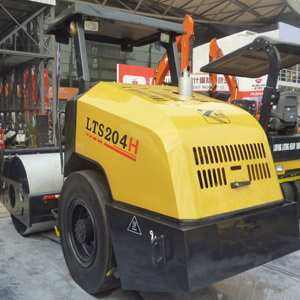

LTS204H Single Drum Roller

LTS204H Single Drum Roller

Technical specifications:

MODEL   LTS204H
Overall dimension mm 3935X1500X25156
Operating mass Kg 4000
Travel speed Km/h 0-6.3
Engine model ZN390Q
Rated power KW 25
Rated speed r/min 2600
Ground clearance mm 260
Grade ability % 25
Turning angle . 30
Vibration amplitude mm 0.4
Vibration frequency Hz 45
Centrifugal force kN 40
Vibration round width mm 1350
Wheelbase mm 1820
Turning radius mm 4000
Water tank capacity L 160
