Main Features:
1. Hydraulic double wheels drive, Hydraulic front drum vibration and steering, with reliable performance and optimum function/price ratio.
2. LTC203P hydraulic front and rear wheels drive, hydraulic front drum vibration.
3. Both front and rear wheels have scraping and water spray unit, advanced sprinkler pump system can achieve intermittent, greatly expanded mechanical proper working condition.
4. Adopt N390 diesel engine, very convenient for use and maintenance.
5. Compact integral structure, small volume, capable of used for compaction on narrow site, with small investment, quick return of good economic.
6. LTC203P rear tire formed by four smooth tire, effectively improve the quality of compaction of asphalt pavement, improve the climbing ability.
7. LTC203P walking more stable, damping effect.
8. LTC203P High-end seats, has greatly enhanced operator comfort, reduce fatigue.
9. LTC203P is optional for front blade, a multi-purpose machine, greatly improving efficiency.

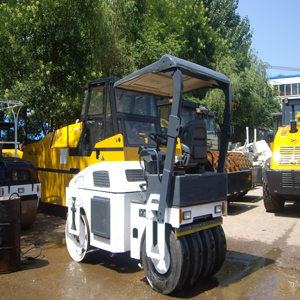

LTC203/LTC203P Tire Combined Hydraulic Vibratory Roller
Main Technical Parameters:| Model | LTC203P | LTC203 | |
| Operating Mass | kg | 3000 | 3000 |
| Static linear load | N/cm | 120/103 | 120 |
| Vibration frequency | mm | 0.5 | 0.5 |
| Centrifugal force | KN | 30 | 2X30 |
| Vibration frequency | kZ | 50 | 500-12 |
| Travel speed | Km/h | 0-12 | 0-12 |
| Grade ability | % | 32 | 30 |
| Steering angle | mm | 30 | 30 |
| Overall dimension | Mm | 2760X1400X2580 | 2760X1400X2520 |
| Drum diameter | Mm | 700 | 700 |
| Drum width | Mm | 1250 | 1250 |
| Quantity of rear tire | pic | 4 | / |
| Specification of rear tire | 7.50-5 | / | |
| Wheelbase | Mm | 2010 | 2010 |
| Diesel power | kw | 23 | 23 |
| Diesel model | ZN390Q | ZN390Q |
Our products will be continuously improved with the progressing of the technique, so please indicate the difference between the listed parameters in the sample sheet and structures and take material object as the standard.
-
