Main Features of 165 hp Bulldozer
1. 165 hp Bulldozer (165 hp dozer) has attractive appearance and a strong sense of the times.
2. High engine power, large output torque, low oil-consumption, reliable.
3. Hydraulic transmission, automatic speed regulation, gear shifting without stopping the machine.
4. Three components on single element single stage torque converter, high efficiency, large capacity.
5. The new-style ROPS-FOPS, practical, beautiful.
6. The novel hexagon cabin, a broader vision, better ventilation, better seal effect.
7. 165 hp Bulldozer the new-style bulldozing working equipment is durable and its bucket capacity is much larger.

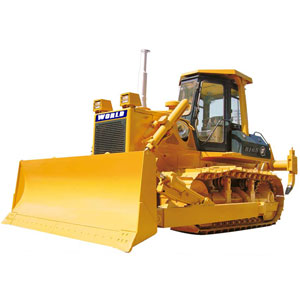

165 HP Bulldozer

165 HP Bulldozer

8. The new-style three-stage alarm device is mechanically integrated, electronic monitoring instrument shows three-stage alarm.
9. Manipulation design is people-oriented. Handle distributes both sides, which makes it more convenient to operate.
10. Working equipment adopts servo controlling, less strength to operate.
11. Working equipment adopts electronic lock, more convenient, more reliable.
12. Diverse optional devices: ROPS-FOPS cabin, ordinary cabin, cabin with air conditioner, heater, the anther starting aid, angle and straight blade push broach, U-blade spade, environmental sanitation spade etc.

Main Specification of 165 hp Bulldozer

Product Model B165Y-1 B165YS
Engine
Model C6121ZG05C C6121ZG05C
Type Four-stroke, water cooling, straight vertical, direct injection type Four-stroke, water cooling, straight vertical, direct injection type
Flywheel power (kW) 122
Rated speed (r/min) 1850
Number of cylinders -bore × stroke (mm) 6-121 ×152 6-121 ×152
Starting method 24V 7.5kW Electrical starting 24V 7.5kW
Battery  24V (12VX2) -195AH
Air cleaner Dry type,precleaned cyclone air cleaner Dry type, precleaned cyclone air cleaner
Transmission System
Torque converter 3-element, single-stage, single-phase
Transmission Hand-operated, Hydraulic shift, planetary gear, multiple disc clutch, forced lubrication by gear pump
Bevel gear Helical bevel gear, splash lubricated
Steering clutch Wet, multiple disc, Spring loaded, Hand-operated with booster and hydraulic-released
Steering brake Wet, band brake, operated with hydraulic booster
Final Drive Spur gear, double reduction, splash lubricated
Under Carriage
Sprocket Segmented
Number of track rollers (each side) 6 (4single,2 double) 7 (3single,4double)
Track tension Hydraulic-adjusted
Floating seals are used in all sprockets, track rollers, carrier rollers and front idlers
Travel Speed (km/h) 1st 2nd 3rd
Forward 3.8 6.6 10.6
Reverse 4.9 8.5 13.6
Track
Type Sealed and lubricated single grouser or sealed single grouser
Track pitch (mm) 203 203
Track width (mm) 560 1000
Number of track shoes (each side) 37 44
Length of track on ground (each side) 2430 3140
Ground Clearance (mm) 400 500
Track gauge (mm) 1880 2150
Hydraulic System Of Working Equipment
Working pressure (Mpa) 13.7 13.7
Rated Flow (L/min)(2000r/min) 250 250
Pump Double gear pump Gear pump
Control valve Hydraulic-operated, plunger, servo controlling Hand-operated, sliding type
Cylinder Bore × Rod ×Stroke (mm) Φ110×Φ65×1026
Work Equipment
Blade type Straight tilt blade Angle Straight tilt blade
Width × Height (mm) 3416×1150 4050×1050 3970×1050
Max. lift above ground (mm) 1090 1110 1180
Max. drop below ground (mm) 530 530 440
Pitch adjustment (。) 55 55 55
Max. tilt (mm) 860 / 860
Length × Width × Height (mm) 4996×3416×3240 5185×4019×3240 4996×3970×3240
Weight (kg) 17860 17480 18200
Ripper Type
Max.dig below ground (mm) 572
Max. lift  above 492


165 hp Crawler bulldozer we produce has been exported to Europe, South America, Middle East, Southeast Asia, and Africa. 165 hp Bulldozer (165 hp dozer) is very popular in these countries. Over 10 years of export experience, World Equipment has become a leading Chinese manufacturer of crawler bulldozer. We also keep developing and researching 165 hp bulldozer (165 hp dozer) products better adapted to the market to gain more acknowledgements from the clients. If you need 165 hp bulldozer (165 hp dozer), please contact us.
