Komatsu technology is introduced into W136 wheel loader. The reliability and productivity of the machine is high; WEICHAI Deutz, YUCHAI or WEICHAI HUAFENG engine make the machine powerful and reliable; Torque converter and counter-shaft transmission gearbox-Komatsu technology are used. They can be assembled separately. The machine has the features of higher reliability and easier maintenance; W136 wheel loader adopts Driving Axle-Meritor technology; W136 wheel loader can be operated easily due to fully hydraulic steering system and power shift transmission; the bucket can be leveled automatically. We have many optimized working device, which can ensure higher productivity; the operation environment is comfortable because new design cabin, grammar seat and air-conditioner are employed at option. There are various working devices that are available, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork, etc. Therefore, this wheel loader can meet your different needs.

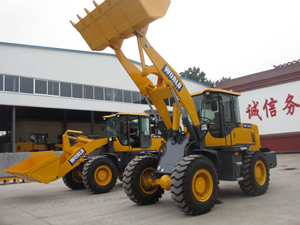

W136 Wheel Loader
Main Specification of W136 Wheel Loader
Specifications | ||
1 | Bucket capacity | 1.7m³ |
2 | Rated load | 3000kg |
3 | Transportation dimension (L×W×H) | 7500×2430×3120mm |
4 | Wheelbase | 2760mm |
5 | Thread | 1800mm |
6 | Max. breakout force | 138KN |
7 | Max. dumping height | 3020/3250mm |
8 | Dump distance | 1200mm |
9 | Total time | 11s |
10 | Operating weight | 9500kg |
Engine | ||
1 | Model | Cummins engine 6BT5.9-C125 |
2 | Pattern | Turbocharger, Inline、water-cooled、4-stroke、direct injection |
3 | Rated power/speed | 92kw/2200rpm |
4 | Max. torque | 860N.m |
5 | Normal fuel consumption | 162g/kW.h |
6 | Total displacement | 6L |
7 | Fuel | 0#or-10﹟ 0﹟or-10﹟light diesel |
Torque converter and transmission system | ||
1 | Model of torque converter | YJ320B-1 |
2 | Pattern | 3-element single stage |
3 | Transmission type | Full-power shift, counter shift type |
4 | Number of gear | 4 forward, 2 reverse |
5 | Max. travel speed | 40km/h |
Alex | ||
1 | Alex | Xuzhou/laiyang |
2 | Main reducer pattern | Arc taper gear, moderation of first grade |
3 | Pattern of wheel side moderation | single stage planetary |
Tire | ||
1 | Tire Size | 17.5-25 |
Steering system | ||
1 | Pattern | Articulated and hydraulic steering |
2 | Min. turning radius(outside of bucket) | 5700mm |
3 | Max. turning angle | 37º±1 |
Hydraulic system | ||
1 | Implement pump | CBGV2100 |
2 | Displacement | 100ml/r |
3 | System working pressure | 27.5MPa |
4 | Distribution device model | DF25.2C |
Brake system | ||
1 | Service brake | Air assisted oil disc on four wheel |
2 | Parking brake | flexible shaft control, outside bunch drum type |
