W118 mini wheel loader features include:
1. Fully hydraulic steering system and power shift transmission makes the operation easier.
2. Bucket can be leveled automatically and there are many optimized working device that can be available easily. Therefore, the productivity of this kind of machine is higher.
3. The operation environment has been equipped with new design cabin, grammar seat, air-conditioner and other device. It is comfortable for the driver.
4. There are various working devices that can be available easily, such as log clamp, pipe clamp, grass fork, plow, ore bucket, loose bucket, fork etc.

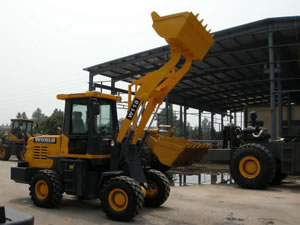

W118 Mini Wheel Loader
Main Specification:| Specifications | ||
| 1 | Bucket capacity | 1.03m³ |
| 2 | Rated load | 1800kg |
| 3 | Transportation dimension (L×W×H) | 5800×1730×2800mm |
| 4 | Wheelbase | 2160mm |
| 5 | Thread | 1520mm |
| 6 | Max. breakout force | 32KN |
| 7 | Max. dumping height | 3200/3700/4500mm |
| 8 | Dump distance | ≥930mm |
| 9 | Total time | 9s |
| 10 | Operating weight | 4000kg |
| Engine | ||
| 1 | Model | WEICHAI HUAFENG ZH4102G41 |
| 2 | Pattern | Inline, water-cooled, 4-stroke, direct injection |
| 3 | Rated power/speed | 47kw/2400rpm |
| 4 | Max. torque | 270N.m |
| 5 | Normal fuel consumption | 258g/kW. h |
| 6 | Total displacement | 3.76L |
| 7 | Fuel | 0# or -10﹟ 0﹟or -10﹟ light diesel |
| Torque converter and transmission system | ||
| 1 | Model of torque converter | YJ265 |
| 2 | Pattern | 3-element single stage |
| 3 | Transmission type | Full-power shift, counter shift type |
| 4 | Number of gear | 2 forward, 2 reverse |
| 5 | Max. travel speed | 24km/h |
| Alex | ||
| 1 | Alex | Wangda |
| 2 | Main reducer pattern | Arc taper gear, moderation of first grade |
| 3 | Pattern of wheel side moderation | Planet gear moderation of single |
| Tire | ||
| 1 | Tire Size | 20.5/70-16 |
| Steering system | ||
| 1 | Pattern | Articulated and hydraulic steering |
| 2 | Min. turning radius(outside of bucket) | 3500mm |
| 3 | Max. turning angle | 35º±1 |
| Hydraulic system | ||
| 1 | Implement pump | CBG1045 |
| 2 | Distribution device model | DF15.2C |
| Brake system | ||
| 1 | Service brake | Air assisted oil disc on four wheel |
| 2 | Parking brake type | Flexible shaft control, outside bunch drum type |
We are a professional manufacturer and supplier of mini wheel loader and excavator in China. With over 10 years' export experience, we have accumulated abundant clients and production experience.
