Home » Products » Road Roller » Double Drum Vibrating Roller » 6-10 Ton Mechanical Compact Roller

Applications of 6-10 Ton Mechanical Compact Roller:
Our 6-10 ton mechanical compact roller is mainly used to compact asphalt pavements, and it is widely used in highway, municipal work, parking area, sports ground, and many other projects.

Main Features of 6-10 Ton Mechanical Compact Roller:
1. It is designed with compact structure, hydraulic vibration, hydraulic steering and hydraulic shake.
2. Seated on the ground and vibrating horizontally, its oscillatory drum can get the required compacted thickness quickly.
3. This kind of 6-10ton mechanical compact roller can protect and press places that subject to vibration.
4. Its drums are fitted with scrapers and sprinkling devices.
5. Its compacting force can reach as high as 13t.

6. The anticorrosive water spray system of this mechanical compact roller has unique nozzle design and can cover the edge of drums.

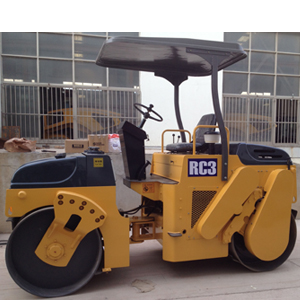

6-10 Ton Mechanical Compact Roller

Technical Parameters of 6-10 Ton Mechanical Compact Roller:

Specifications	R6C	RC10J	Specifications	RD6C	RDC10J
Operation weight (T)	6 Ton	10 Ton	Operation weight (T)	6.2 Ton	10 Ton
Diameter of vibrating drum (mm)	1100	1200	Diameter of vibrating drum (mm)	1100	1200
Rolling width (mm)	1500	1700	Rolling width (mm)	1500	1700
Centrifugal force (KN)	67.3	98	Centrifugal moment (kN.m)	21.1	35.7
Theoretical amplitude of vibration (mm)	0.72	0.45/0.7	Oscillation amplitude (mm)	0.6	0.82
Vibration frequency(Hz)	40	42	Oscillation frequency (Hz)	40	42
Moving speed range I II III IV (KM/h)	I 2.7, II 6, III 13.2, IV20	I 2.4, II 4.8, III 8.4, IV/	Gradeability	30%	Engine model: Cummins 4BT3.9-C100
Diesel engine model Rated power (KW)/ Rated Speed	495AY 35.3/2000	Static linear pressure(vibratory wheel)N/cm:259	Overall dimensions L×W×H (mm)	4210×1630×2660	4880×1980×2800
Patterned Tire	11.00-20	Static linear pressure (Driving wheel) N/cm: 317	Smooth Tire	11.00-20	Rated power (KW)/Rated Speed: 75

World Equipment is a professional manufacturer and supplier of mechanical compact roller in China. We offer 6 ton mechanical vibratory roller and 10 ton mechanical vibratory roller for your choice. Our products have been well received by clients from Europe, South America, Middle East, Southeast Asia and Africa, and more. Over the past 10 years, we have kept improving our products to make them better adapt to the market. If you need mechanical compact roller, we will provide a competitive price for you. Don't hesitate, please contact us.
