Description of Three Wheel Static Roller
The three wheel static roller are capable of compacting grave, macadam, asphalt concrete, non-cohesive or less cohesive soils, lime and cinder as well as rolling of foundations of public squares and pavements.
Main Features of Three Wheel Static Roller
1. Compact construction and small turning radius, with smooth finished surface.
2. The disk brake and change-over clutch are reliable and durable.
3. The hydraulic steering system assures easy manipulation.
4. The driving roll is made of cast steel. With thickness increased for sturdy and wear-resisting.
5. The comfortable seat and excellent visibility feature its rational design.
6. Either a cab or a canopy is available to buyer's option.

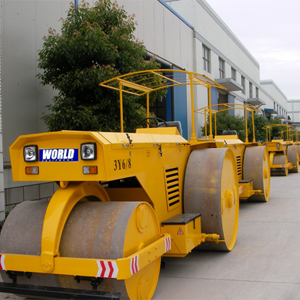

Three Wheel Static Roller
Main Specification of Three Wheel Static Roller
| Model | 3YJ8/10 | 3YJ8/12 | 3YJ10/12 |
| Weight (t) | |||
| Without Ballast | 8 | 8 | 10 |
| With Ballast | 10 | 12 | 12 |
| Roll Diameter (mm) | |||
| Front Roll (for steering) | 1060 | 1060 | 1060 |
| Rear Roll (for driving) | 1500 | 1600 | 1600 |
| Roll width (mm) | |||
| Front Roll | 1250 | 1250 | 1250 |
| Rear Roll | 500×2 | 500×2 | 500×2 |
| Linear Pressure (N/CM) | |||
| Rear Roll | |||
| Without Ballast | >520 | >520 | >650 |
| With Ballast | >650 | >730 | >780 |
| Travel speed (km/h) | |||
| I speed | 2 | 1.9 | 1.9 |
| II speed | 3.5 | 3.2 | 3.2 |
| III speed | 8 | 7.5 | 7.5 |
| Min. Turning radius (mm) | ≦5500 | ≦6000 | ≦6000 |
| Grade ability | 1:5 | 1:5 | 1:5 |
| Wheel Base (mm) | 2500 | 2800 | 2800 |
| Ground Clearance (mm) | 270 | 300 | 320 |
| Diesel Engine | |||
| Type | 495AY | 4135K-2C | 4135K-2C |
| Rated Power | 36 | 58 | 58 |
| Rated speed | 2000 | 1500 | 1500 |
| Overall Dimension(mm) L×W×H | |||
| Cabin | 4343×2116×2717 | 4664×2116×2767 | |
| Canopy | 4460×2116×2613 | 5039×2116×2663 | 4760×2116×2663 |
World Equipment is a professional Chinese manufacturer and supplier of three wheel static roller. In over 10 years, we keep improving our products to make them better adapt to the market. We offer 3 types, namely, 3YJ8/10 (8T/10T), 3YJ8/12 (8T/12T), and 3YJ10/12 (10T/12T), to satisfy the clients' different demands. If you need three wheel static roller, contact us without hesitation.
-
